Mobility Scooter Wheelchair Carrier Atv Ramp Trailer.
Brand new in box unused
145cm X 76cm

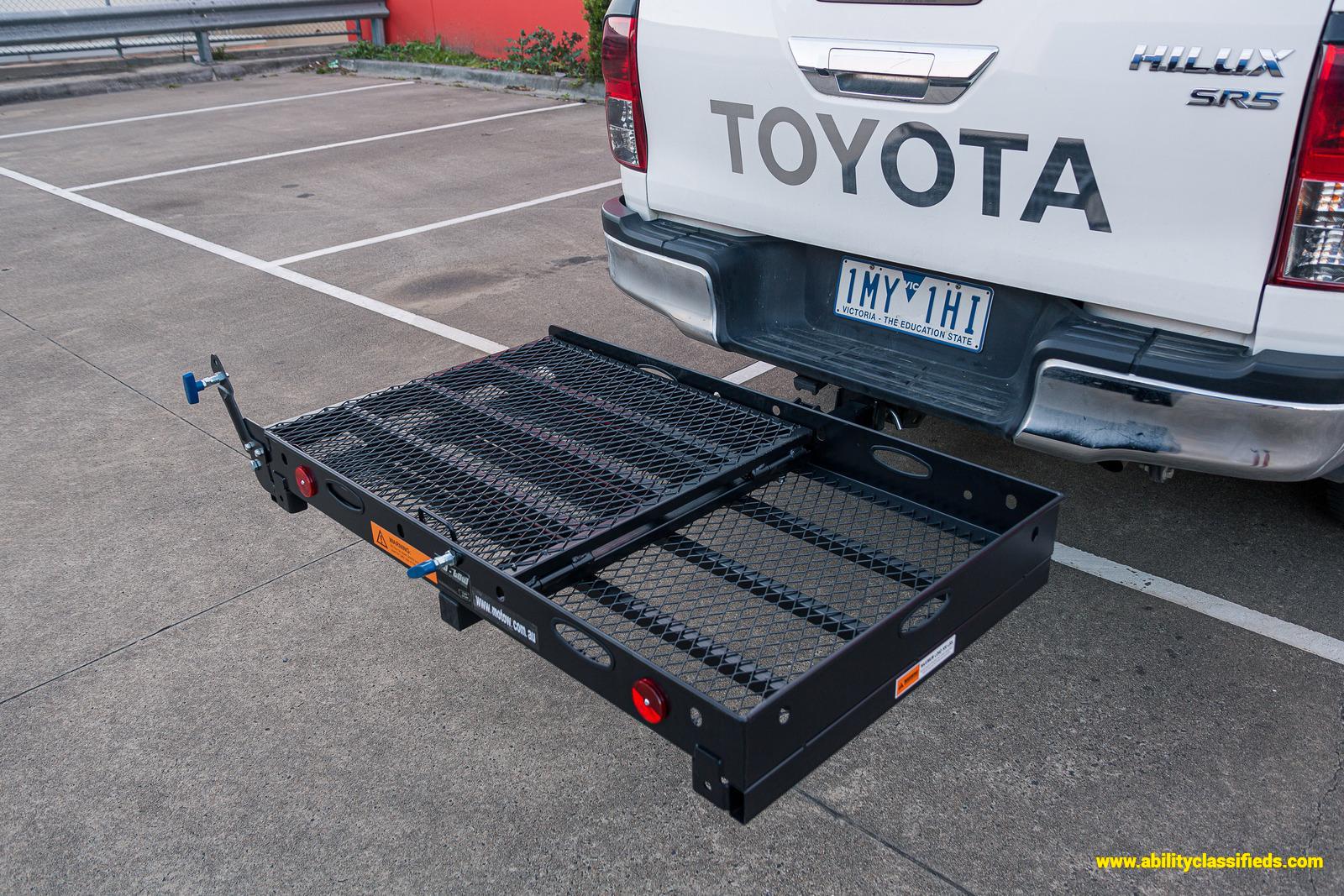

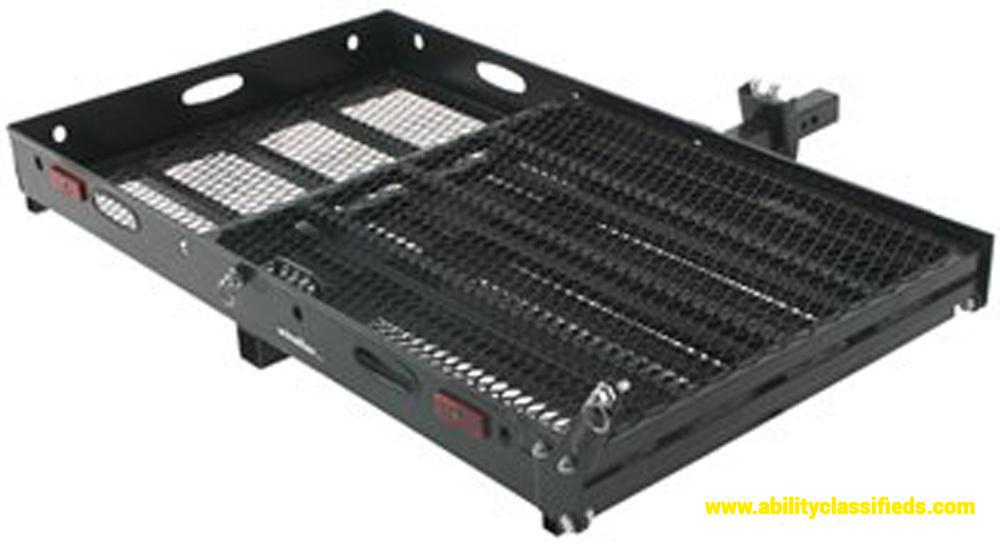

A fantastic solution for carrying power wheel chairs, mobility scooters, ATVs or just about anything else that will fit inside the parameters of the carrier.
A great alternative to updating your vehicle to enable you to carry your mobility device or ATV.

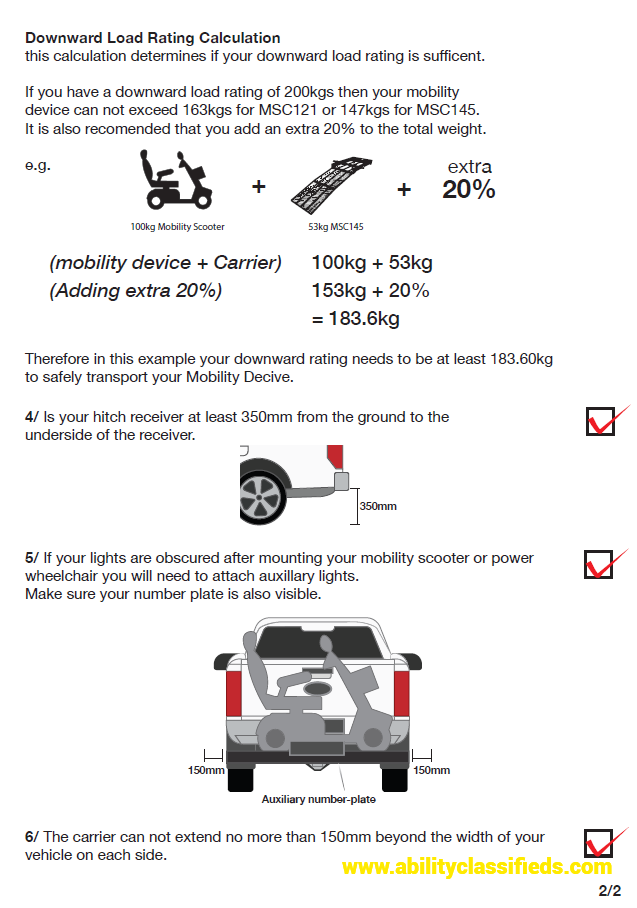

All you need is a vehicle fitted with a 2""x 2"" (50mm x 50mm) Hayman Reece type pull out tow bar that has a downward load rating equivalent to the weight of your mobility device and the weight of the carrier (53kgs) combined.
Use the many tie down points to secure your mobility device to the carrier.
The carrier features an integrated 2 section ramp which folds up and out into 3 different positions.
The first position keeps the ramp folded upright against the back of the vehicle when not in use. It is secured in position by a spring pin.

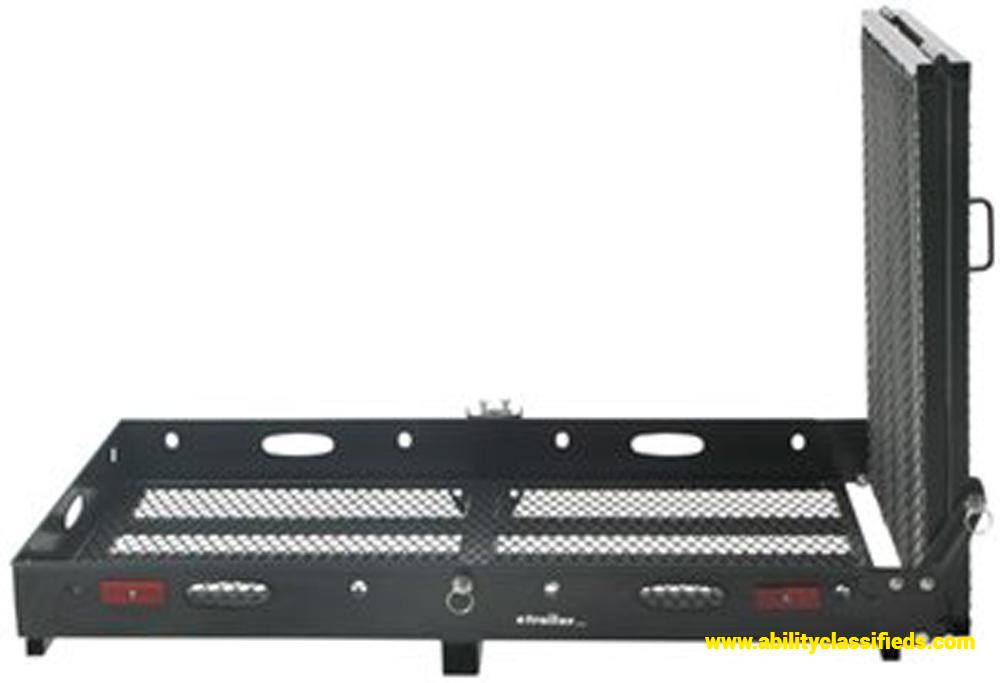

The second position allows the ramp to stand up at 90 degrees to the main carrying platform after the mobility scooter or wheelchair has been loaded on to the main platform.
The ramp is held vertically in place with a spring pin and a padlock for security.

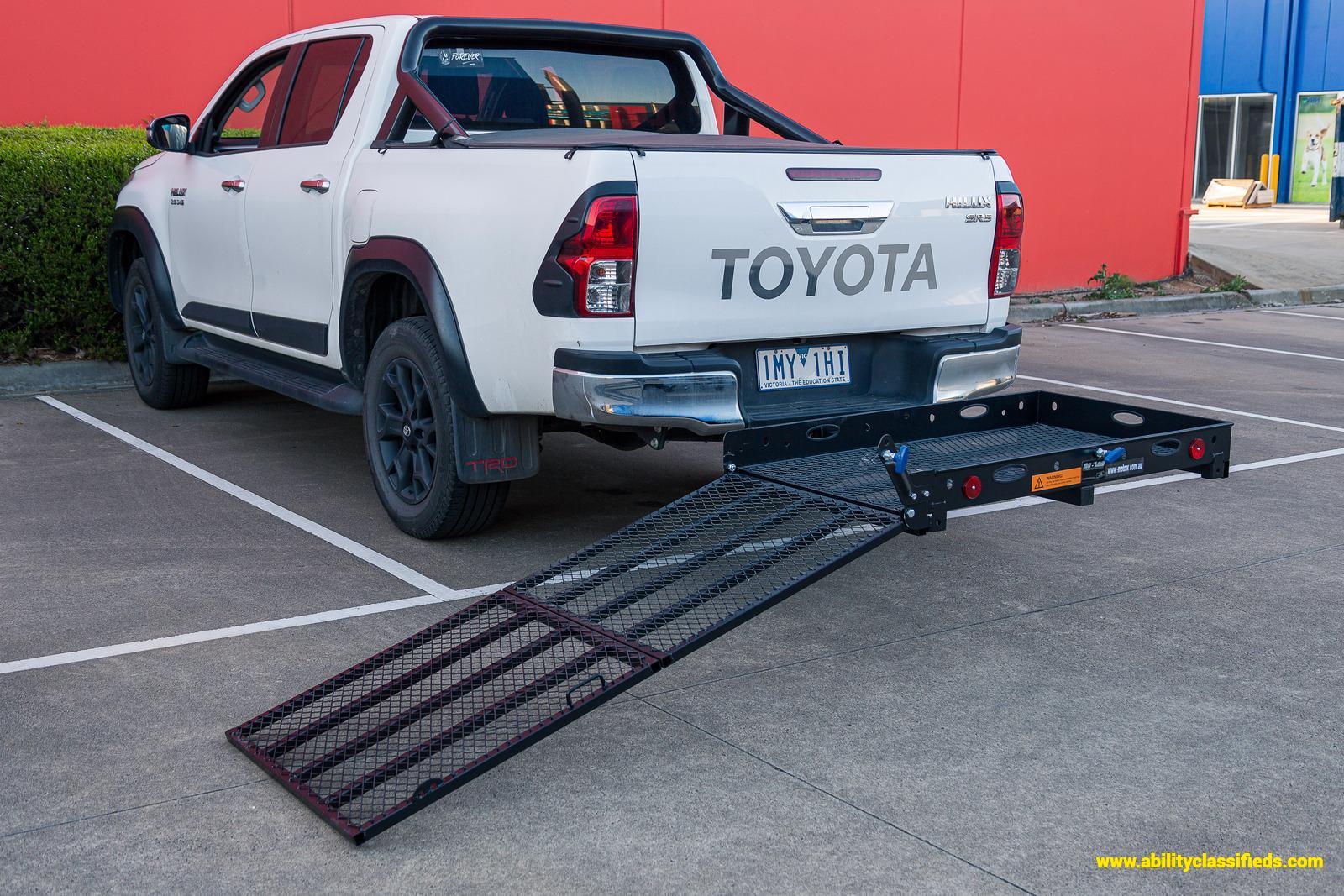

The third position is the ramp unfolded. This position allows for scooters, power wheelchairs, and just about anything with wheels to be pushed or powered up the ramp.
A welded handle on the ramp allows for easy folding and unfolding.
Tie down straps can be hooked onto any of the 10 tie down holes found on the 4 ” sides of the carrier
The rear of the carrier has 2 reflectors for greater visibility at night.
Supporting the carrier is a heavy duty 2'"" x 2"" (50 x50 mm) hitch tube and an anti tilit bracket which features 4 bolts and a safety pin to allow the hitch tube to be removed from the carrier.
The hitch tube has a 5/8” hitch pin hole for securing the carrier to your vehicle
Specifications:
Load Capacity 220 kgs
Carrier Length 145 cm
carrier width 76cm
ramp length 152 cm
ramp width 75 cm
weight 53 kgs
Hitch mount required (inside diam ) 2"" x 2"" or 50 x 50 mm
Colour Black
Features:
Black powder coated finish
Each carrier includes a extra long 5' ramp when fully extended

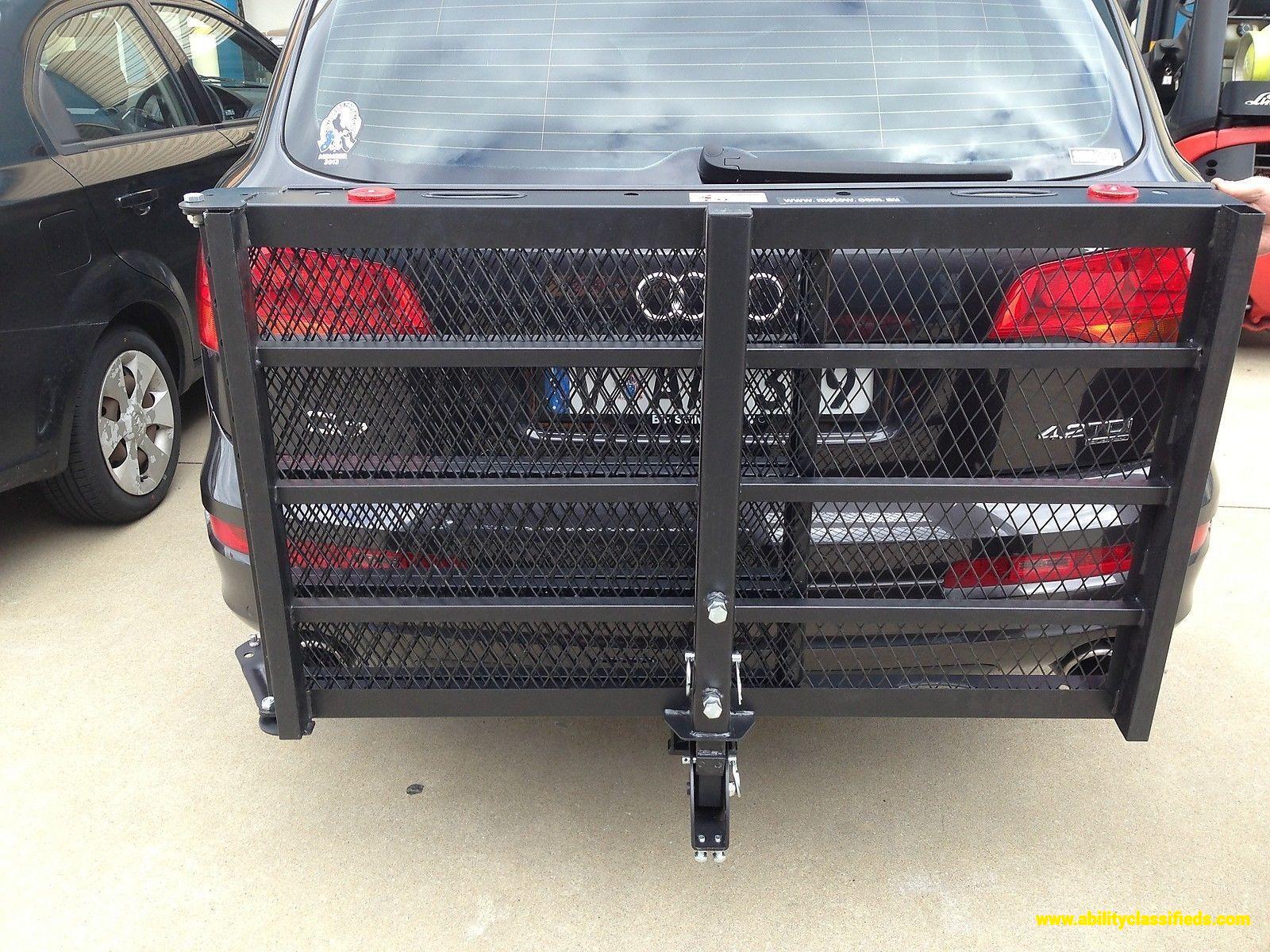

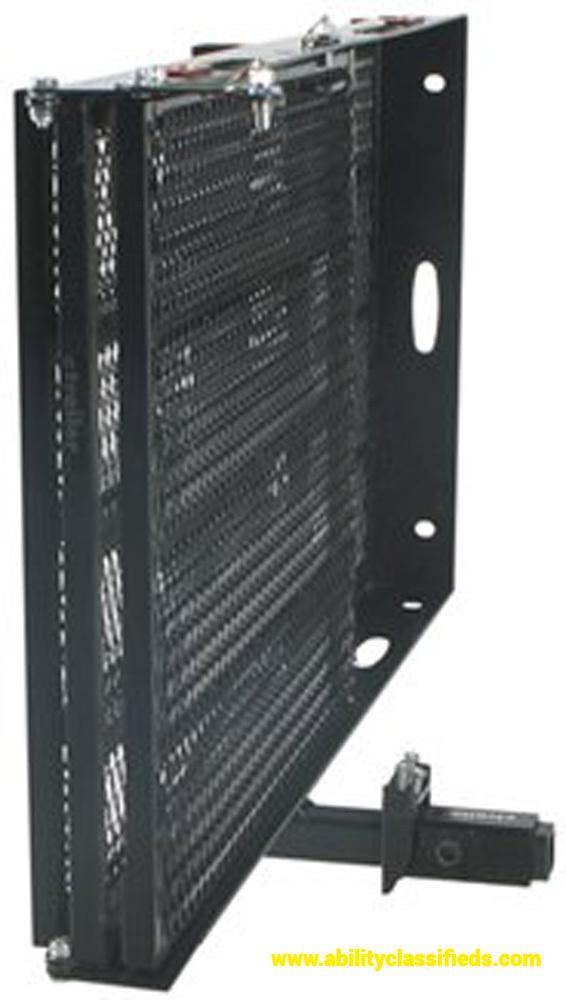

The entire carrier has the option of tilting upward and locking in the upright position
Quick release spring loaded pins allow for easy unlocking of the ramp
Large cut out handles allow easy lifting of the carrier. Each cut-out has a rubber insert for padding.
Handles also allow easy controlled lifting of the carrier
Anti-Tilt Device to minimize any left to right roll .
2 Reflectors Included
10 tie-down points
Sturdy steel construction.
Buyer to organise shipping or pick up
Cash on pickup or EFT clear funds by OSKO
